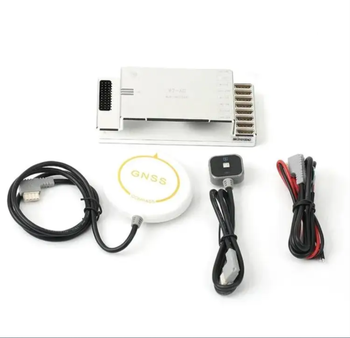

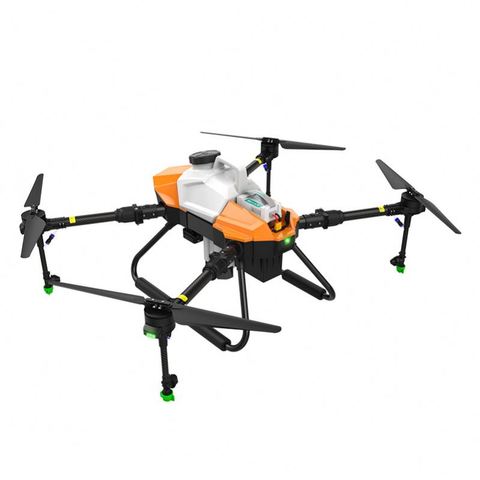

Axle length: 1575mm Flight control system: (microgram) VK-V7
Product wheelbase: dynamical system:
1175 * 1165 * 490mm (expanded) 10020 80kv (motor)
720*780*490mm (folded) FOC 108A (electrically controlled)
Product weight: 35kg (empty) 40136 (awe)
57kg (full load) Pump system: 8 L/ s (flow rate)
Material: 3 K carbon fiber material Working voltage: 58.8V
Arm thickness: 36*40mm Spray system: pressure nozzle
Medicine box capacity: 22L Remote control: H 12
Spray range: 5 ~ 7 m Lithium battery: 14S-10000mAh
Work efficiency: 100 mu/hour Working hours: 40-45minutes
engine parameter
Engine model: GX-7
Type: two cylinder, two stroke, electric
injection, water-cooled gasoline engine
Displacement (mL): 124 Rated power (kW) @7000 r/min: 6.3 Rated
speed (r/min): 7000 Maximum speed
(r/min): 7500 Idle speed (r/min):
5000
Oil level: Please use the brand of oil
specified by the manufacturer
Gasoline grade: 95# gasoline is required
Lubricating oil and gasoline mixing ratio: 1:40
Altitude (M): less than or equal to 2000
meters. The output power decreases with
the altitude rise
Operating ambient temperature: -20 ~ 50
°C
Start mode: one button start with remote
control

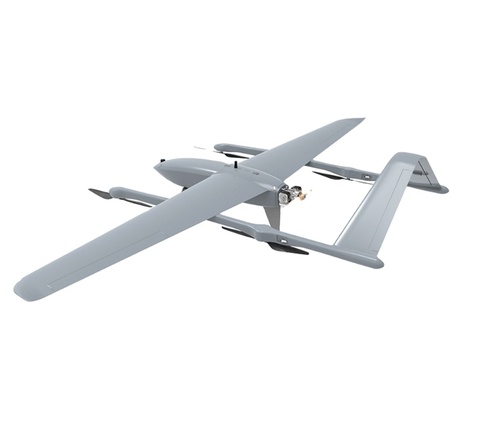

Fuselage length:1880mm

Wingspan:3500mm

Maximum take-off weight:32kg

Aviation case dimensions: 170cm x 73cm x 60cm detachable short case dimensions; 210cm x 73cm x 50cm integrated long case dimensions

Duration of voyage:170min--5kgPayload

Maximum payload:10kg

Crulsing speed:90-120km/h

Maximum wind resistance:12m/s ( 6 levels of wind )

Using the environment:-20C~+45C;Preveat light rain

Power battery:4*25000mAh-6s lithium battery

Maximum control range: Remote control (Manual control) 1km

Ground station control (Data transmission) : 30km

Take-off and landing method:Vertical take-off and landing

Vertically mounted propeller size:26 inches

Fixed-wing rear push propeller:24 inches (recommended)

Fixed-wing maximum thrust-to-weight ratio:0.56 (standard configuration)

Support for flight control systems compatible with composite wing control

Standard empty take-off weight:≥20kg

Safe voltage when entering the landing approach:Loaded voltage not less than 44.5V (TATTU high voltage version battery)

Wing installation angle: 2°

Number of airspeed tubes installed: 2 (standard configuration is a single airspeed tube opening)

Does it support system hot-swappable power supply

battery pack: Yes (non-standard)

Types of flight control supported: Any flight control that supports compound wing control is available.
